Automatic Multi Head Vial Cap Sealing Machine

Automatic Multi Head Vial Cap Sealing Machine
Automatic Multi Head Vial Cap Sealing Machine
Product Code : VAVCS
Product Description

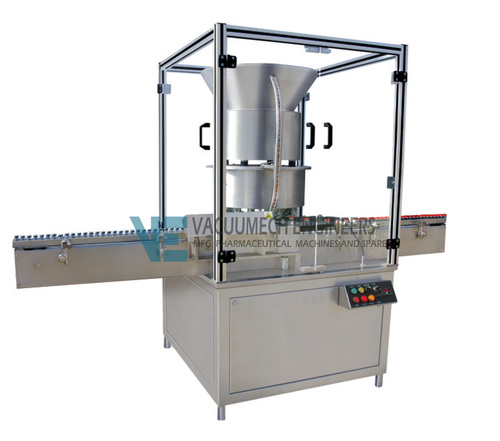

Automatic Multi Head Vial Cap Sealing Machine VAVCS


(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VAVCS – 100

VAVCS – 150

VAVCS – 200

No. of sealing head

4

6

8

Output / Hour *

3600 to 6000

3600 to 9000

4000 to 12000

Direction of Movement

Left to Right

Electric Specifications

Main Motor

1.5 HP / 415 Volts / 50 Hz.

2 HP / 415 Volts / 50 Hz.

Cap Feeding Bowl

0.25 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 ± 50 mm

Change parts required

(A) Container: Star Wheel, Center guide, Feed Worm

(B) Cap: Die & Delivery Chute


Input Specifications

Vial Cap

Diameter

14 mm to 37 mm

Vial Size

Round

Ø 14 mm to Ø 37 mm

Respective Height : 35 mm to 60 mm


Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

1.5kW


Salient Features

  • No container no cap arrangement

  • Rigid MS structure with elegantly matt finished SS cladding

  • Single motor synchronizes conveyor, star wheel, & platform turret

  • ACVFD for speed control

  • Adjustable height of conveyor belt to align with other machine of the line

  • Sealing pressure can be varied to suit different gauges and size of caps

  • Specially designed hopper is provided to increase storage capacity of bowl

  • Low noise level, low power consumptions

  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction & allows smooth and noiseless conveying

  • Universal coupling for quick and easy setting of In-feed worm

  • Adjustable bottle height gauge for easy and quick setting

  • Acrylic enclosure in SS frame (optional)

  • No cap – machine stop arrangement (optional)

  • Motorized height adjustment (optional)
