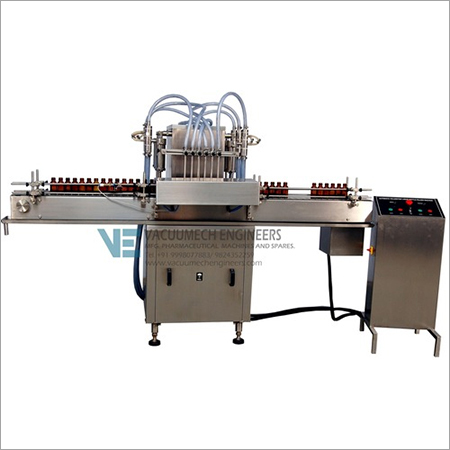

Automatic Volumetric Multi Head Liquid Filling Mac

Automatic Volumetric Multi Head Liquid Filling Mac
Automatic Volumetric Multi Head Liquid Filling Mac
Product Code : VLF1
Brand Name : VACUUMECH ENGINEERS
Product Description

Automatic Volumetric 4/6/8 Head Liquid Filling Machine

  1. BRIFE DISCRIPTION

The automatic liquid filling machine is volumetric filling type, applicable in liquid of low viscosity. The VLF-V series machine works on volumetric principal and this machines which are generally used in fill any type of liquid such as juices, petroleum jelly, pharma syrups, drinking water, paints, strainers, perfumes, flavoured milk, adhesives, shampoo, edible oil, hair oil, lube oils, coolants, lotion shampoo and many more products which are in proper liquid form into various types of containers with precise accuracy on a continuous conveyor line. The unit shall have provision to fit stainless steel Syringes. A specially designed synchronized mechanical movement with a conveyor system (5 or 6 ft. long) and a bottle indexing mechanism ensures smooth running of the machine. A 'NO BOTTLE NO FILL' mechanism prevents spillage of liquid when continuous flow of bottles is not available.


  1. ACCORDING TO ITS APPLICATIONS MACHINE ARE GIVEN BELOW:

  • Oil filling machine

  • Juice filling machine

  • Milk filling machine

  • Syrup filling machine

  • Hair oil filling machine

  • Shampoo filling machine

  • Gum filling machine

  • Mouth freshener filling machine


  1. SPECIFICATIONS

  • 2/4/6/8 Head Machine.

  • Works on Syringe Base Piston

  • Plc Control. (Optional)

  • HMI Touch screen controls. (Optional)

  • It is suitable to fill the liquid into bottles, cans, jars. The size of the filling nozzle is adjustable according to different containers.


  1. TECHNICAL SPECIFICATION

Application

Suitable for Industries like Food and Beverages, Chemicals, Pharmaceuticals, Cosmetic, etc.

Reciprocating Filling Nozzle With Self Centering Devices, S. S. Syringes Twin Pusher System, No Container No Filling System


Four Head

Six Head

Eight Head

Model

VLF V100

VLF V150

VLF V200

Output/Hour

3000/Hour

6000/Hour

9000/Hour

  • Filling Range

  • Filling Accuracy

2 ml to 50 ml vial & 5 ml to 1000 ml bottle.

Up to 2% depending on consistency on liquid density.

Input Specification

  • Container Dia.

  • Container Height


25 mm. To 80 mm.

200 mm maximum.

Change parts required

Syringes, Nozzle & Filling Hose pipe.

Conveyor Height

780mm to 860mm adjustable

Conveyor Length

2450mm

Conveyor Width

80mm

Electrical Rating

  • Main Motor

  • Conveyor Drive


0.50 H.P.

1.00 H.P.

1.00 H.P.

0.50 H.P.

0.50 H.P.

0.50 H.P.

Power required

440 Volts, 50 Hz  & 220 Volts, 50 Hz.

Dimensions (in mm)

1900 L x 960 W x 1000 H

Weight

400Kgs.

450Kgs

500Kgs.

Electric Load

1.5 HP

Air consumption

1cm at 5Kg/cm2



  1. SALIENT FEATURES

  • Liquid filling for detergent, lube oil, food, condiment,  cosmetics, pharmaceutical, flavouring essence, automotive liquid and mineral water etc.

  • VLF series machines adopt a volumetric piston filling mechanism for smooth liquid filling. The transmission system is driven by a servo motor.

  • These machines are easy to operate and fill precise quantity of liquid into containers.

  • Pneumatic Air filtered oil free, sterile low pressure AIR at 5kg /cm2.

  • Available in SS304. SS316,GMP Models

  • Quick changeover facility from one container to other

  • Easy and accurate adjustments of fill desired quantity

  • Separate drive for Conveyor.

  • Synchronized A.C. drives for conveyor & main drive.

  • All product contact areas made of Stainless Steel or PTFE.

  • The unit is made compact & versatile as per Gmp Norms.


Note: Specification can be changed as per customer requirements.
