Vial Liquid Filling Rubber Stoppering Machine

Vial Liquid Filling Rubber Stoppering Machine
Vial Liquid Filling Rubber Stoppering Machine
Product Code : VLFRS
Product Description

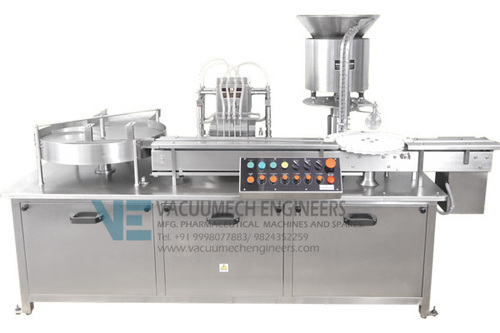

Automatic Vial Liquid Filling Rubber Stoppering Machine VLFRS

(Photograph is for the reference purpose only. Machine Construction & Specification are subject to change without prior Notice due to Continues up-gradation Process)


Technical Specifications

Model

VLFRS-60

VLFRS-120

Output/Hour*

2400 to 6000

3600 to 9000

Direction of Movement

Left to Right

Number of head/Syringe

4 Nos.

8 Nos.

Fill Size**

2 ml to 80 ml

Filling Accuracy**

±0.5-1%

Electric Specifications

Main Machine

1 HP / 415 Volts / 50 Hz.

2 HP/ 415 Volts / 50 Hz.

Conveyor

0.5 HP / 415 Volts / 50 Hz.

Height of Conveyor

860 mm ± 50 mm Adjustable.

Change parts required

(A) Syringes, (B) Nozzle, (C) Inlet & outlet hose pipe.

(A)Container: Star Wheel, Center guide, (B) Delivery Chute


Input Specifications

Rubber Stopper

13mm, 20mm & 28mm with the help of change part

Vial Size

Round

Ø 15 mm to Ø 70 mm

Respective Height : 25 mm to 140 mm


Utility Requirement

Electric Supply

3 Phase + Neutral + Earthing

Electric Load

1.5 kW


Salient Features:

  • No cross contamination.

  • Suitable for the filling Volume of 2ml to 100ml.

  • Piston pump/Peristaltic pump aseptic filling (as per Customer Requirement).

  • Filling with accuracy of ±0.5-1%.

  • Easy to validate filling system for small/large batch production.

  • All Contact Parts Made from SS 316L & framework by SS 304.

  • Variable A.C. frequency drive for speed adjustment & Digital Vial Counter for counting production output.

  • In-feed Turn Table/ Unscrambler for automatic feeding of objects.

  • On-line Mechanism.

  • No Vial – No Filling” system.

  • No Vial – Machine Stop” system.

  • PLC with HMI. (Optional)
